Keyence BX-Z 710

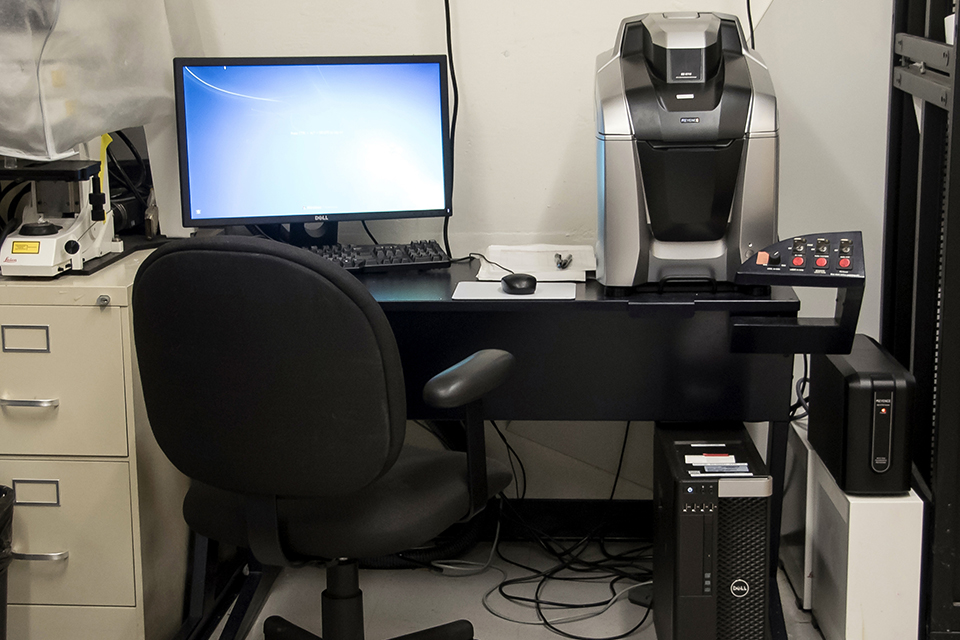

Keyence equipment in the Confocal lab

Keyence BX-Z 710 is a Fluorescence Microscope that supports brightfield, phase contrast, oblique illumination, and fluorescence observation all within a single compact unit.

Objectives Filter Cubes
1 - CFI Plan Apo λ2× (972029) NA 0.10 WD 8.50 mm 0.34 Channel 1 Dapi
2 - CFI Plan Fluor DL 4× (972081) NA 0.13 WD 16.5 mm 0.65" Phase-contrast Channel 2 GFP
3 - 10 CFI Plan Fluor DL 10× (971936) NA 0.30 WD 15.2 mm 0.60" Phase-contrast Channel 3 Texas Red
4 - S PL FL ELWD ADM 20×C (971962) NA 0.45 WD 8.2 to 6.9 mm 0.32" to 0.27" Phase-contrast Channel 4 Bright Field
5 - S PL FL ELWD ADM 40×C (971963) NA 0.60 WD 3.6 to 2.8 mm 0.14" to 0.11" Phase-contrast

Additional CY3/TRITC   CY5
