Leica SP5 Resonant Confocal Microscope

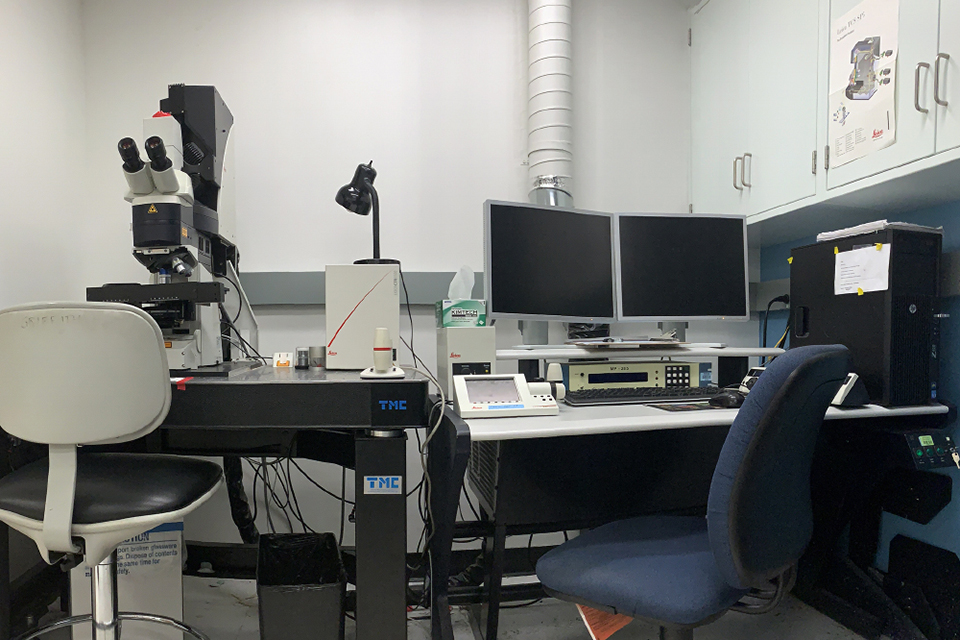

Leica SP5 equipment in the Confocal lab

The resonant scanning system on the Leica TCS SP5 works at 8000 Hz frequency and enables the user to acquire images at a higher frame rate. This is faster compared to the recording speed of conventional scanners and can be used for live cell imaging.

Objectives Laser Lines
HC PL APO 10x/0.40 > 405 nm
HC PL APO 20x/0.70 CS > 458 nm
40x/1.25 oil immersion > 476 nm
63x/1.4 oil immersion > 488 nm
100x HCX Plan APO 1.40 > 514 nm
Hcx APO 10x/0.30 WUV-I > 543 nm
HCX APO L 63x/0.90 WUV-I > 594 nm
FLUOTAR L 100x/0.75, fwd 4.6 mm (dry) > 633 nm

Leica SP5 Spectral Confocal Microscope / Resonant Scanner with 405 laser.   Fixed stage upright research microscope (Leica DM6000 CFS) with DIC. Translation stage with motorized x-y movement, separate super Z Galvo stage and transmitted light detector.​
