Information Technology Services

• Projector/Screen

• Installed PC
• Laptop HDMI
  • Credenza
  • Conference table

• 2 pan/tilt/zoom cameras
  • 1 Facing lectern/boards
  • 1 Facing audience
  • Both cameras are controllable from the touch panel

Learn more about the different types of cameras

• Audio playback from selected AV source through room's installed speakers.

This classroom is equipped for use of webconferencing or recording applications with the installed cameras and microphones for an optimal HyFlex experience. Zoom is available to all Brandeis users and can be launched on the installed PC or on a user's laptop and access the installed cameras and microphones.

Users can access Zoom to setup meetings at brandeis.zoom.us.

• Learn more about Brandeis HyFlex classrooms.
• Learn more about Zoom at Brandeis.
• Zoom resources for faculty.

Get started by selecting a source

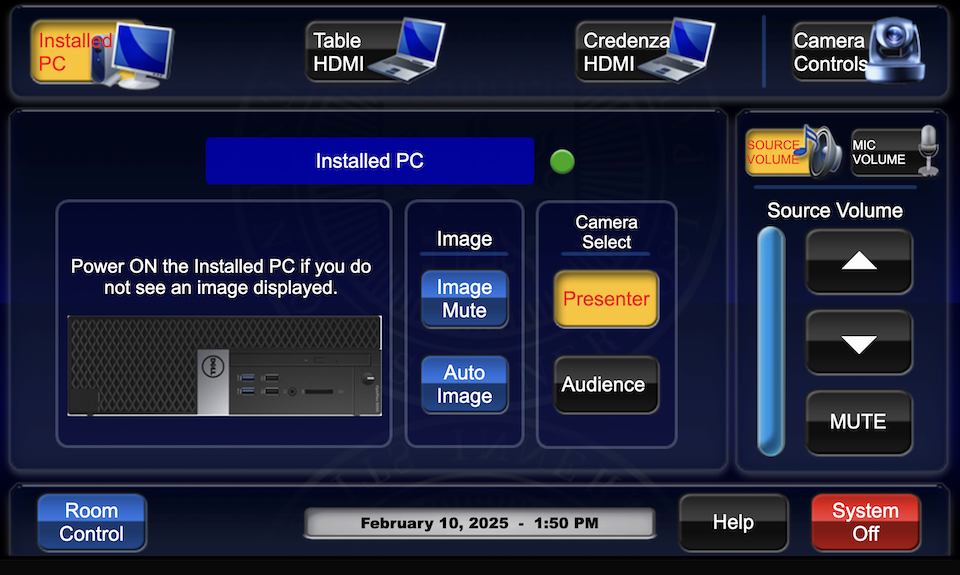

• At the Instructor Desk, tap the touch panel to wake it up and view the home page.
• Select the desired source on the top row of the touch panel.
• The projector will turn on and display the selected source. Controls will not function during projector warm up.
• Once the projector is on, other sources can be selected using the appropriate buttons.

Installed PC

• Select "Installed PC" to route the PC to the projector and rear monitors.
• Audio will automatically route to installed speakers.
• Login to the installed PC with Brandeis UNET credentials
• When finished, log out of computer. Please DO NOT shut down the computer.

Laptop HDMI

• Select “Table HDMI” or "Credenza HDMI"  to plug in a laptop to the HDMI cable located at either location.
• There may be a set of display adapters, but they can go missing or become damaged. Users are encouraged to bring their own adapters to ensure successful connectivity.

• The volume controls are located on the right side of the touch panel and control the volume of installed speakers in the room.
• Select source volume to control the volume of computer audio that is amplified through the installed speakers.
• Select mic volume to control the volume of an external microphone if one is plugged into the XLR input on the AV rack.

• Raise or lower volume with the up/down arrow buttons.
• Ensure that audio levels are set properly on the source device (i.e. installed PC or laptop). If volume is up on the touch panel but audio level is not present or low, the volume may need to be adjusted on the source device (such as the installed PC or laptop/mobile device).

• Select Camera Control button on home screen.

• Select which camera to use:
  • Presenter-facing
  • Audience-facing
• Select a preset position from the numeric pad OR use the pan/tilt/zoom buttons on touch panel to find a customized camera shot.

• To shut down the system, press the red System Off button from the main page.
• Then press the green Power Down button to confirm.
• If using the installed PC, log out of the computer, but do not shut it down. It will go to sleep in low power mode after the user has logged in
• Please return any wireless devices to charger bays before leaving!
