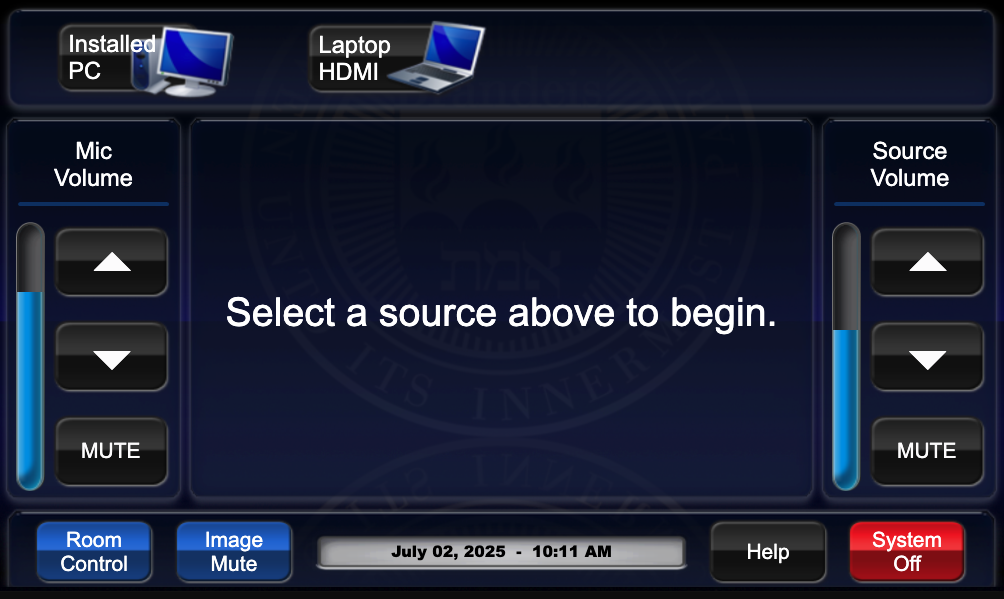

Tap the touch panel to access the main control page.
Select the desired source on the top row of the touch panel.
The projector will turn on and display the selected source. Controls will not function during projector warm up.
Once the projector is on, other sources can be selected using the appropriate buttons.
Installed PC
Select "Installed PC" to route the PC to the projector and rear monitors.
Audio will automatically route to installed speakers.
Login to the installed PC with Brandeis UNET credentials
When finished, log out of computer. Please DO NOT shut down the computer.
Laptop/Mobile Device
Select “Laptop/Mobile” and then choose a connection type to match your cable, adapter or wireless device.
Select a connection method (HDMI or VGA)
There may be a set of display adapters at the podium, but they can go missing or become damaged. Users are encouraged to bring their own adapters to ensure successful connectivity.
Blu-Ray/DVD Player
Select "Blu-ray/DVD" from the main page.
Playback controls will appear on the touch screen when you select the source.
Blu-ray/DVD player is located in the rack under the desk.
Aux A/V
Allows users to connect an external analog audio or video device to the AV system via RCA inputs.
Aux Audio
Allows users to connect an external analog audio device via 3.5mm audio jack.
Press Source Volume or Mic Volume on the right side of the touch panel to independently control mic volume or source audio.
Raise or lower volume with the up/down arrow buttons.
Ensure that audio levels are set properly on the source device (i.e. installed PC or laptop). If volume is up on the touch panel but audio level is not present or low, the volume may need to be adjusted on the source device (such as the installed PC or laptop/mobile device).
Select “Laptop/Mobile” and then choose a connection type to match your cable, adapter or wireless device.
To shut down the system, press the red System Off button from the main page.
before leaving!
