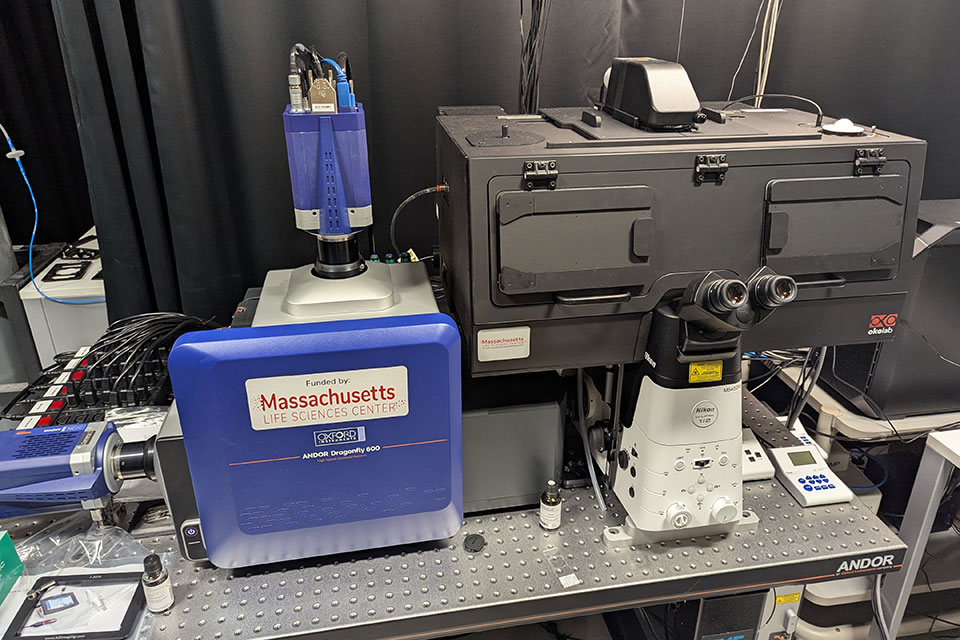

"Godzilla:" Andor Dragonfly 620SR
Godzilla is an apt name for this do-it-all system. Bringing a plethora of features including full incubation chamber, 5-lasers, Borealis TIRF, SMLM, Mosaic digital micromirror and MicroPoint4 Ablation laser, this is a powerful system that can even destroy your sample. The speed of the spinning disk also means it can blast through your samples!
Funded by a Massachusetts Life Sciences Center (MLSC) research infrastructure program, this system is available to internal and external users.
Scope Body
Nikon Ti2E Inverted
Lasers
- 405
- 488
- 561
- 640
- 730nm
- Micropoint4 Ablation laser
Objectives
- Air:
- 2x/0.1
- 10x/0.45
- 20x/0.8
- Immersion:
- 60x/1.42 PlanApo
- 40x/1.25 Apo Silicon Immersion
- 60x/1.49 Apo TIRF Oil
Detectors
2x Sona-6 Extreme >95%QE back thinned cameras
Environmental Control
Full CO2 and temperature control with humidifier
Features
- Dual microlens confocal disks (40µm and 25µm disks)
- Micropoint 4 Ablation laser for FRAP
- Photoconversion
- Ablation
- Mosaic3 Digital Micromirror for multi-region FRAP and optogenetics
- 405nm laser
- 360-720nm LED
- Borealis TIRF SMLM
